System structure

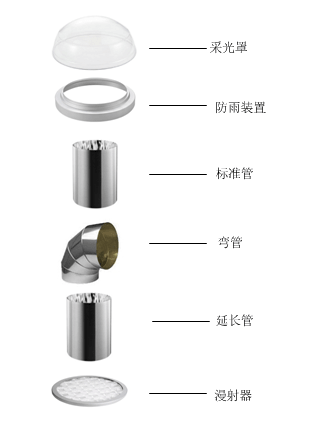

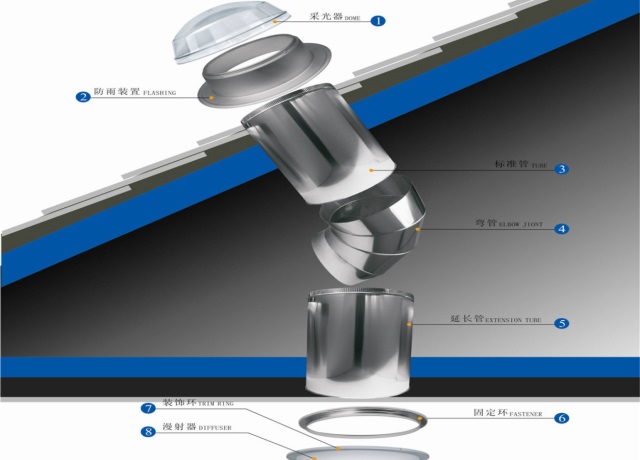

The device includes main three parts: daylighting collector, inifity tube and diffuser.
Daylighting collector
Features
1, Material: PC, anti-UV, Flame retardancy.
2, Good mechanical properties, excellent ageing resistance and can prevent from 90% UV.
3, Transmissivity: 89%.
4, Thickness: 3.5mm.
5, Types: Spherical daylighting collector, Aspherical daylighting collector, Planar daylighting collector.
半球面型 非球面型 平板型

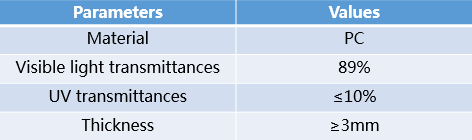

Parameters of daylighting collector
Inifity tube

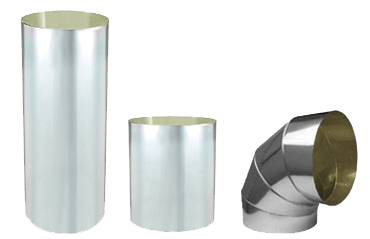

It has straight tube and 0~90° angle tube.
Parameters of Infity tube
Diffuser
漫射器具有極強的透射性和散射性，可以將進(jìn)入系統(tǒng)的自然光重新分配，使之均勻分布在室內(nèi)。材料采用PMMA（丙烯酸塑料），一次注塑成型；

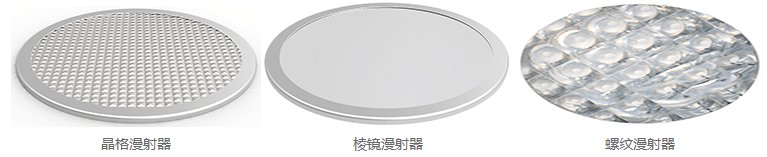

特點：透光率高，漫射效果好，光線分布均勻；型號：有晶格，棱鏡和螺紋
Parameters of diffuser
